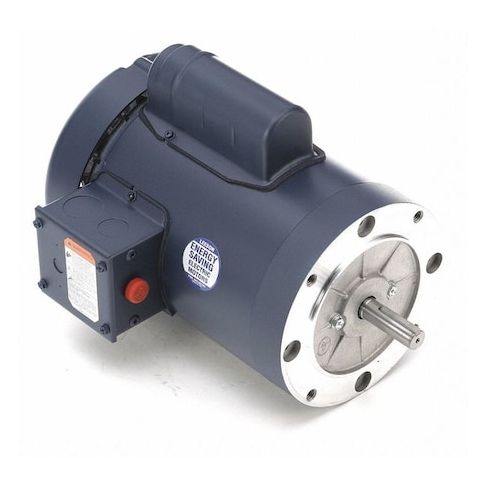

50 Hz Motor, 1 HP, 1425, 110/220 V, 56C, TEFC MPN:113924.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1707535
50 Hz Motor, 1 HP, 1425, 110/220 V, 56C, TEFC
The Leeson 50 Hz Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 110/220V environments, this single-phase motor features a capacitor-start design and is rated for continuous duty cycles. With a maximum ambient temperature of 40 degrees C, it can withstand demanding conditions. The motor's totally enclosed fan cooled (TEFC) design ensures quiet operation and reduced maintenance. Ideal for use in industrial settings, the Leeson 50 Hz Motor is a cost-effective and reliable choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and durability
- Continuous duty cycle for sustained operation without overheating
- Maximum Ambient Temperature rating of 40 Degrees C for reliable performance in high-temperature environments
Top product applications:
- Pump
- Compressor
- Fan
50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.90
- Package Width: 13.50
- Package Height: 13.90
- Package Weight: 37.68
Product info last updated on January 31, 2026 1:59am UTC
Category: Motors
