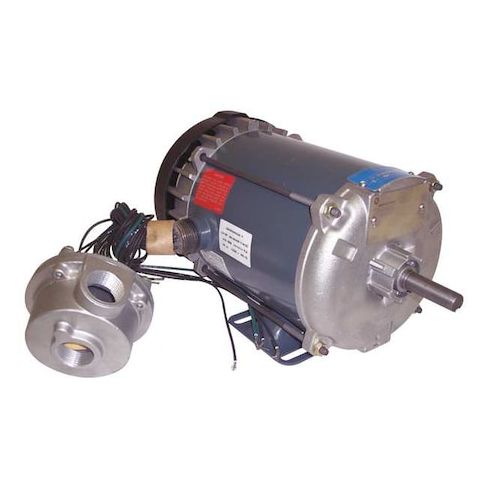

Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B MPN:056T17G15550
Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B
This hazardous location motor is designed for use in areas where flammable gases or dust are present, such as oil rigs, mines, or chemical plants. Its totally enclosed fan-cooled (TEFC) design keeps the motor cool and protected from environmental factors, ensuring continuous operation and a long lifespan. With a 1/2 horsepower rating and 1,725 RPM, this motor is ideal for applications requiring moderate power and speed, such as pumps, fans, and blowers. Its compact size and robust design make it a reliable choice for harsh environments, providing a safe and efficient solution for various industrial and commercial applications.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Industrial control panels in hazardous locations
- Oil and gas extraction equipment
- Petrochemical processing machinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.4/1.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 28.20
Product info last updated on January 31, 2026 1:38am UTC
Category: Motors
