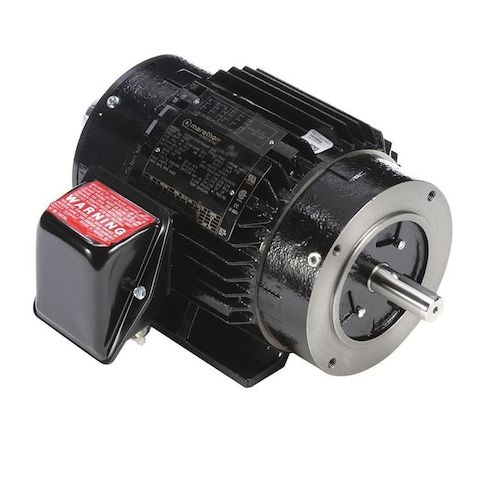

Vector Motor, 6.0 lb-ft, 2 HP, 230/460 V MPN:145THTN17034
Vector Motor, 6.0 lb-ft, 2 HP, 230/460 V
The Leeson Vector Motor is a high-performance, three-phase motor designed for demanding applications. With a 2 HP rating and 6.0 lb-ft of torque, it provides efficient power for a wide range of uses. Suitable for continuous operation in temperatures up to 104°F, this motor is ideal for industrial settings, such as manufacturing, processing, and material handling. Its NEMA Design A rating ensures reliable performance and long motor life. The Vector Motor's compact design and versatile voltage capabilities make it a valuable addition to any facility, offering increased productivity and reduced downtime.
Top product features:
- Three-phase motor design
- 145TC frame size
- NEMA Design A rating
Top product applications:
- Pumps and compressors for industrial applications
- Conveyor systems for manufacturing and warehousing
- Fans and blowers for HVAC and ventilation systems
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 145TC Frame, Torque 6 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 74.00
Product info last updated on February 12, 2026 1:12pm UTC
Category: Motors
