Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm MPN:117119.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1485294

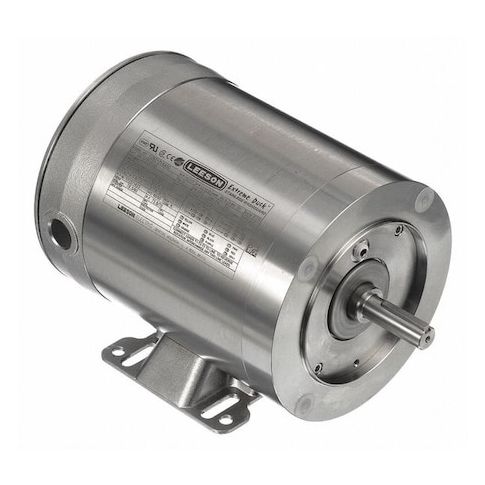

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm
The Leeson 1/2 HP, 1725 rpm washdown motor is a reliable and efficient solution for applications requiring high sanitation and durability. Designed for use in harsh environments, this three-phase motor features a totally enclosed non-ventilated (TENV) design that prevents the ingress of contaminants and dust. Suitable for continuous duty cycles, it can operate at temperatures up to 40°C and is rated for use at 208V. Ideal for use in food processing, pharmaceutical, and other industries where high sanitation is critical, this motor provides long-lasting performance and minimizes downtime. Its compact design makes it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Non-Ventilated (TENV) motor design provides protection from dust and water.
- Operates at 1725 rpm for efficient performance.
- Usable at 208V for flexibility in application.
Top product applications:
- Food Processing
- Pump and conveyor system in a brewery
- Industrial laundry
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.00
- Package Height: 11.50
- Package Weight: 42.17
