Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B MPN:056T17G15537
Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B

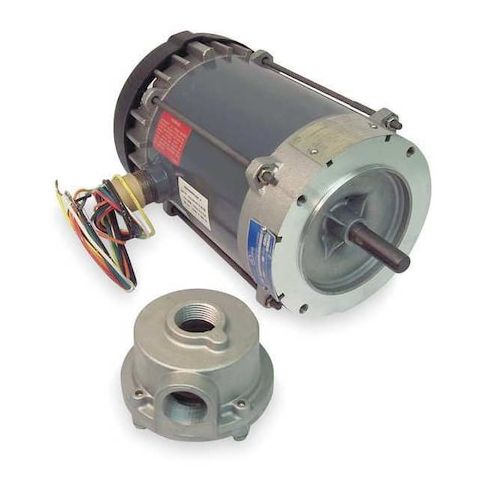

This hazardous location motor from Leeson is designed for use in environments where standard motors are not suitable, including areas with explosive or flammable gases and dust. With a 3/4 HP rating and 1,725 RPM, it provides reliable power for a range of applications, including oil and gas extraction, mining, and chemical processing. Its totally enclosed fan-cooled design and Class I, Class II, T3B rating ensure safe operation in harsh conditions. The motor is also suitable for use in environments with high temperatures, up to 40 degrees C, making it an ideal choice for use in hot or humid areas.
Top product features:
- Three Phase operation
- Totally Enclosed Fan Cooled (TEFC) design
- Hazardous Location classification for use in Class I and Class II environments
Top product applications:
- Pumps and water treatment systems in hazardous locations
- Industrial equipment and machinery in hazardous environments
- Oil and gas industry applications in explosive atmospheres
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.94
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 29.00
Product info last updated on January 31, 2026 8:17am UTC
Category: Motors
