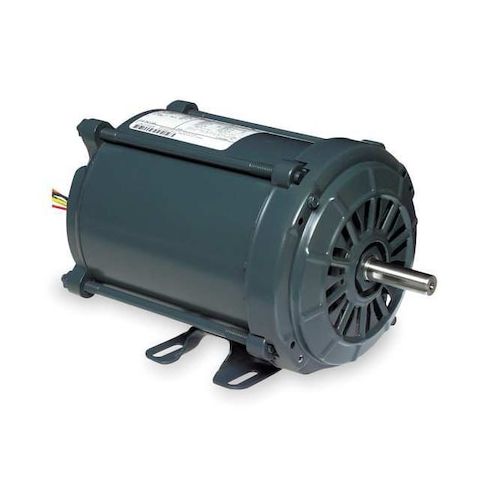

Hazardous Loc Mtr, 3 Ph, TENV, 1/3 HP, T3B MPN:056T17E15516
Hazardous Loc Mtr, 3 Ph, TENV, 1/3 HP, T3B
This 1/3 HP Three-Phase Hazardous Location Motor from Leeson is designed for use in harsh environments where safety is paramount. Ideal for applications in Class I, Class II, and Division 1/2 hazardous locations, this motor operates at 1,725 RPM and is rated for 230V AC and 460V AC. With a totally enclosed non-ventilated (TENV) design, it provides maximum protection against dust and moisture. The motor's compact size and lightweight design make it easy to integrate into existing systems, while its high efficiency and reliability ensure optimal performance and reduced downtime. Suitable for use in industrial and commercial settings.
Top product features:
- Three Phase Design
- Totally Enclosed Non-Ventilated (TENV) Motor Enclosure
- Automatic Thermal Protection
Top product applications:
- Chemical Process Control
- Oil and Gas Industry Equipment
- Power Generation and Distribution
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 1.2/0.60 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.97
- Package Width: 8.20
- Package Height: 6.81
- Package Weight: 25.00
Product info last updated on March 1, 2026 12:45pm UTC
Category: Motors
