50 Hz Mtr, 3/4 HP, 1425, 110/220 V, 56C, TEFC MPN:113923.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1260567

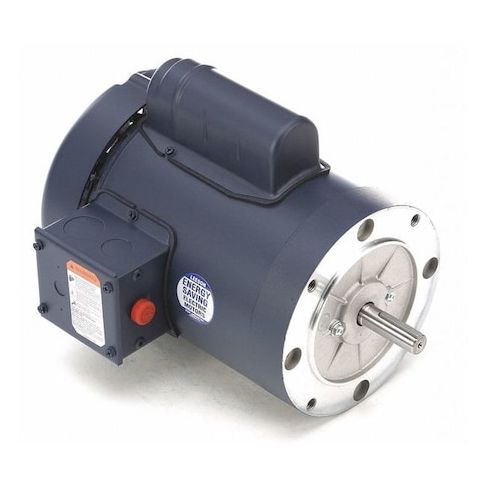

50 Hz Mtr, 3/4 HP, 1425, 110/220 V, 56C, TEFC
The Leeson 50 Hz motor is a reliable and efficient solution for various industrial applications. This 3/4 HP motor is designed for single-phase use and features a capacitor-start design for optimal performance. With a 56C frame and totally enclosed fan-cooled (TEFC) enclosure, it can operate in a wide range of temperatures and environments. The motor's continuous duty cycle and Class F insulation make it suitable for demanding applications. Its compact design and easy installation make it a great choice for use in manufacturing, material handling, and other industries where reliable power is essential.
Top product features:
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Manual thermal protection for user control and flexibility
- Continuous duty cycle for high-capacity operation and uninterrupted performance
Top product applications:
- Pump
- Compressor
- Fan
50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 11.8/5.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 11.10
- Package Height: 12.20
- Package Weight: 30.75
Product info last updated on February 23, 2026 2:18pm UTC
Category: Motors
