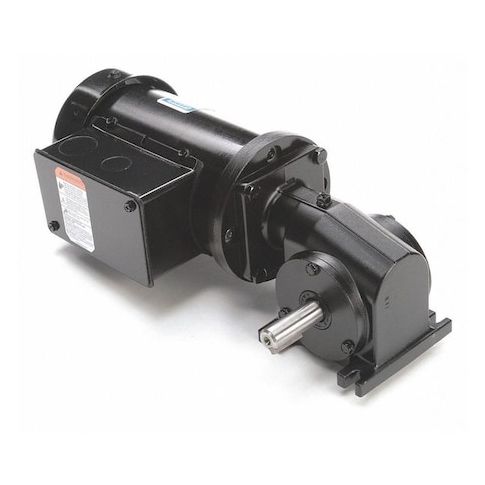

AC Gearmotor, 138 in-lb Max. Torque, 86 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase MPN:M1145129.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1237117
AC Gearmotor, 138 in-lb Max. Torque, 86 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase
This AC gearmotor is a reliable and efficient solution for various applications, including material handling, packaging, and automation. With a maximum torque of 138 in-lb and a nameplate speed of 86 RPM, it provides consistent performance and smooth operation. The motor's totally enclosed fan-cooled design ensures durability and long lifespan, while the inverter-rated design allows for seamless integration with variable frequency drives. Suitable for use in horizontal or vertical orientations, this gearmotor is ideal for applications requiring continuous operation, such as conveyor systems, robotic arms, and machinery. Its compact size and low weight make it easy to integrate into a wide range of systems.
Top product features:
- Totally Enclosed Fan-Cooled motor design for improved cooling and reliability
- Inverter Rated for use with variable frequency drives
- Right Angle Shaft Orientation for space-saving installation and increased flexibility
Top product applications:
- Inverter Duty
- Continuous Duty
- Totally Enclosed Fan-Cooled
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 86 RPM, Maximum Torque 138 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 20:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Motor Duty Class Continuous, Application Inverter Duty
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 7.80
- Package Height: 6.60
- Package Weight: 17.45
Product info last updated on March 1, 2026 10:37am UTC
Category: Motors
