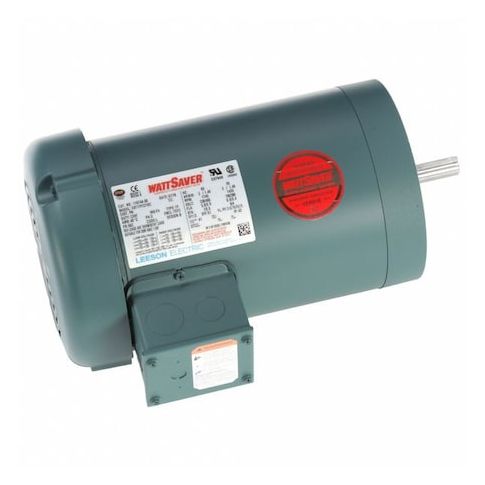

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1, 745 Nameplate RPM MPN:116744.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G107353921
Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1, 745 Nameplate RPM
This 2 HP three-phase general purpose motor from Leeson is designed for a wide range of industrial and commercial applications, including conveyor systems, pumps, and HVAC equipment. Its durable totally enclosed air-over motor enclosure and steel frame ensure reliable performance in harsh environments, while the ball bearings provide smooth operation and long lifespan. With a high efficiency rating of 86.5 percent, this motor helps reduce energy costs and minimize environmental impact. Its reversible shaft rotation and C-face mounting type make it easy to install and integrate into existing systems, making it a versatile solution for various industrial applications.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Air-Over Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Laundry Machines
- Heavy Duty Pumps and Compressors
- Conveyor Systems and Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 2 HP, Nameplate RPM 1,745, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection T-Stat, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Over 3,600, CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 11.10
- Package Height: 11.60
- Package Weight: 45.70
- Restricted States: CA
Product info last updated on April 24, 2026 2:16pm UTC
Category: Motors
