Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 208-230/460V AC Voltage, 3, 490 Nameplate RPM MPN:122171.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G107353914
Three-Phase General Purpose Motor, 3 HP, 145TC Frame, 208-230/460V AC Voltage, 3, 490 Nameplate RPM

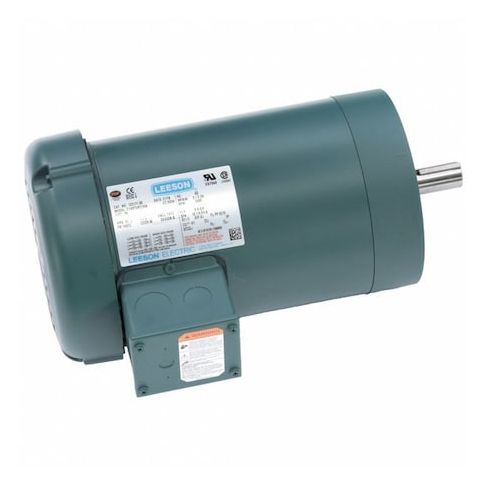

This 3 HP three-phase general purpose motor from Leeson is designed for heavy-duty applications in various industries. With a nameplate RPM of 3,490, it provides efficient and reliable performance. The totally enclosed air-over motor enclosure ensures protection from dust and moisture, making it suitable for use in harsh environments. Its high service factor of 1.15 and ball bearings provide long motor life. This motor is ideal for use in manufacturing, pumping, and conveyor systems, and its CSA and UL certifications ensure compliance with safety standards. It ships in 1 day, making it a convenient choice for businesses.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed air-over motor design provides a safe and reliable operating environment.
- Ball bearings enable smooth and quiet motor operation.
Top product applications:
- Industrial Conveyors
- Pumps and Pumps Systems
- Machine Tools and CNC Machinery
General Purpose Motor, Three-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 3 HP, Nameplate RPM 3,490, Frame 145TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.8-8.0/4.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Over 3,600, CSA, UL
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 11.50
- Package Height: 11.50
- Package Weight: 45.70
- Restricted States: CA
Product info last updated on February 1, 2026 12:48am UTC
Category: Motors
