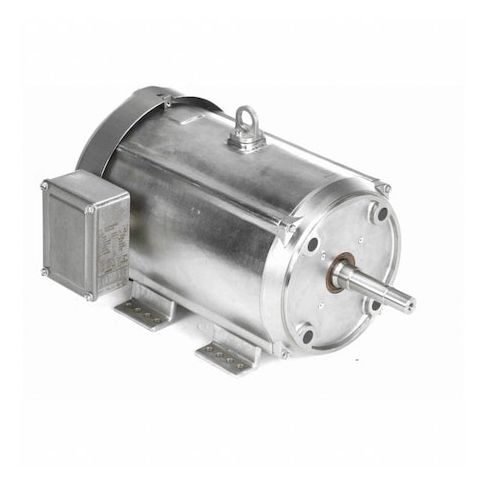

WashdownMotor, 10hp, 3525RPM, 230/460VAC MPN:141275.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G106626668
WashdownMotor, 10hp, 3525RPM, 230/460VAC
This 10hp Marathon Washdown Motor is designed for harsh environments and demanding applications. With a nameplate RPM of 3,525 and a voltage range of 230/460V AC, it can be used in various industrial settings. The motor's totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in temperatures up to 40°C. Suitable for continuous duty cycles, this motor is ideal for applications such as water treatment, food processing, and chemical manufacturing. Its compact size and durable construction make it a reliable choice for demanding washdown environments.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing
- Water Treatment Plants
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 23.6/11.8 A, 215JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.10
- Package Width: 17.00
- Package Height: 19.80
- Package Weight: 187.00
Product info last updated on February 3, 2026 9:57pm UTC
Category: Motors
