Brake Motor, 1/2hp, 1725 RPM, 115/208-230V AC MPN:111950.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G102577995

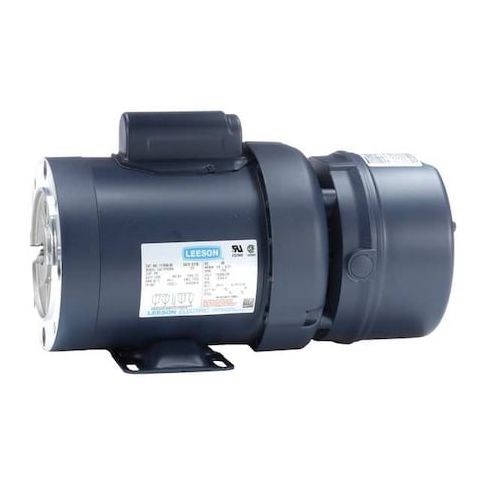

Brake Motor, 1/2hp, 1725 RPM, 115/208-230V AC
This 1/2hp brake motor from Leeson is a reliable and efficient solution for a wide range of applications, including conveyor systems, door openers, and other machinery that requires controlled braking. With a single-phase, capacitor-start design and a nameplate RPM of 1725, this motor provides consistent performance and smooth operation. Its totally enclosed fan cooled design ensures safe and quiet operation in a variety of environments. Suitable for use in the US, this motor is a great choice for industries such as manufacturing, logistics, and construction, where reliable braking is essential. Ships in 1 day with a lead time of 1 day.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase operation for flexibility in system design and installation
- Continuous Duty Cycle for reliable operation in demanding applications
Top product applications:
- Machine Tool Applications
- Conveyor Systems
- Packaging Machinery
Brake Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.4 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 32.90
Product info last updated on January 22, 2026 3:10am UTC
Category: Motors
