50 Hz Motor, 1 HP, 1425, 110/220 V, 56, TEFC MPN:113911.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1021334

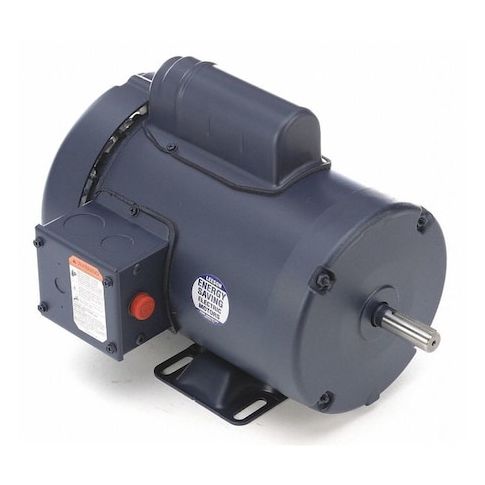

50 Hz Motor, 1 HP, 1425, 110/220 V, 56, TEFC
This 50 Hz motor from Leeson is a reliable and efficient solution for various applications. Designed for single-phase use and capacitor-start operation, it offers 1 HP of power and a 56 frame size. The motor is suitable for continuous duty cycles in temperatures up to 40 degrees C and features a totally enclosed fan-cooled (TEFC) design for optimal cooling and protection. Its compact size and lightweight design make it ideal for use in a range of settings, from industrial and commercial environments to residential areas, providing a cost-effective and reliable solution for motor needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection from environmental factors
- Manual thermal protection for user-initiated shutdown and maintenance
- Continuous duty cycle capability for extended operation without interruption
Top product applications:
- Pumps
- Fans
- Conveyors
50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 12.8/6.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 10.80
- Package Height: 11.60
- Package Weight: 35.69
Product info last updated on January 29, 2026 8:59am UTC
Category: Motors
