WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC MPN:121875.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100722946
WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC

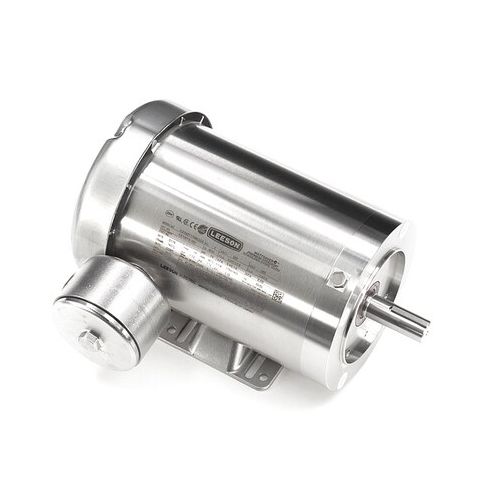

The Leeson Washdown Motor is a high-performance, three-phase motor designed for demanding applications in harsh environments. With a powerful 1.5 horsepower rating and 1750 RPM, this motor delivers efficient and reliable performance in washdown, food processing, and other high-humidity settings. Its totally enclosed fan-cooled design and Class F insulation ensure long motor life and protection against overheating. Suitable for continuous duty cycles, this motor is ideal for use in breweries, wineries, and other industries where high-pressure washdowns are required, providing a durable and efficient solution for demanding applications.
Top product features:
- Three-phase operation
- Totally enclosed fan-cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Pump and Compressor Applications
- Water Treatment and Filtration Systems
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.94
- Package Width: 13.06
- Package Height: 12.88
- Package Weight: 52.00
