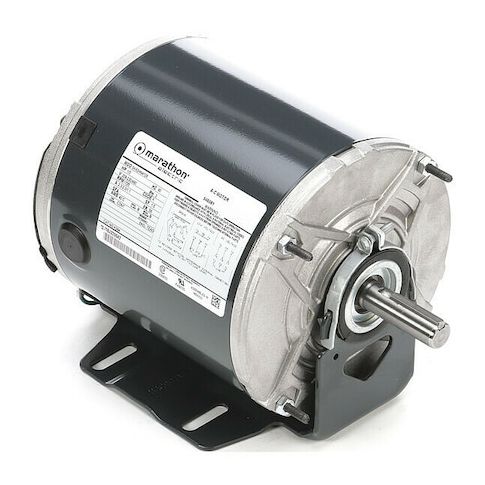

3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM MPN:5K42HN4128
3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1, 725 Nameplate RPM
This 3-Phase Belt Drive Motor from Leeson is a reliable and efficient choice for various applications. With a 1/2 HP rating and 1,725 Nameplate RPM, it's suitable for fans and blowers that require a high level of performance. The motor's three-phase design and 56 frame size make it a versatile option for use in a range of environments. Its continuous duty cycle and CW/CCW shaft rotation ensure smooth operation, while its totally enclosed air-over design provides protection from dust and moisture. Ideal for use in commercial and industrial settings, this motor is a great choice for applications such as HVAC systems, ventilation systems, and material handling equipment.
Top product features:
- Three-Phase Belt Drive Motor Design
- Totally Enclosed Air-Over Motor Enclosure
- Continuous Duty Cycle Operation
Top product applications:
- Air Handling Units
- Commercial and Industrial Ventilation Systems
- HVAC Systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.1/2.3-2.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.69
- Package Width: 7.13
- Package Height: 7.50
- Package Weight: 22.00
Product info last updated on March 13, 2026 10:38pm UTC
Category: Motors
