Hazardous Location Motor, 1 HP, 1725 rpm MPN:056T17G15612

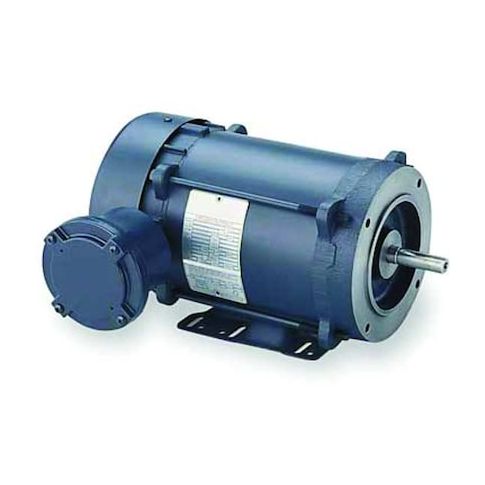

Hazardous Location Motor, 1 HP, 1725 rpm
This Leeson hazardous location motor is designed for use in areas where flammable gases or dusts are present, meeting Class I, Class II, and T3B temperature code requirements. With a continuous duty cycle and totally enclosed fan cooled design, it operates reliably in temperatures up to 40°C. Suitable for applications in oil and gas refineries, chemical plants, and other hazardous environments, this motor offers a safe and efficient solution for powering equipment in challenging conditions. Its compact size and low maintenance requirements make it an ideal choice for a variety of industrial applications.
Top product features:
- Three-phase design
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Hazardous Location Motor in a chemical processing plant
- Hazardous Location Motor in a mining operation
- Hazardous Location Motor in a petroleum refinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.94
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 49.00
Product info last updated on February 9, 2026 12:04am UTC
Category: Motors
