Hazardous Location Motor, 1 HP, 3450 rpm MPN:056T34G15573
Hazardous Location Motor, 1 HP, 3450 rpm

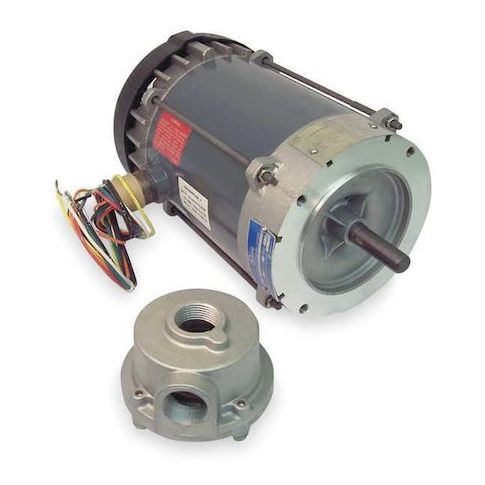

This 1 HP, 3450 rpm hazardous location motor from Leeson is designed for use in explosive and flammable environments. Suitable for three-phase applications, it operates at 230V AC or 460V AC with a maximum ambient temperature of 40°C. The motor features a totally enclosed fan-cooled design, providing continuous duty cycle operation and automatic thermal protection. Its compact 56C frame makes it ideal for space-constrained installations. Ideal for applications in the oil and gas industry, chemical plants, and other hazardous locations, this motor offers reliable performance and reduced maintenance.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Oil and Gas Industry
- High-Temperature Processing Equipment
- Chemical Plants and Refineries
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.60
- Package Height: 10.50
- Package Weight: 33.85
Product info last updated on February 3, 2026 8:49am UTC
Category: Motors
