Hazardous Location Motor, 1 HP, 1725 rpm MPN:056T17G15604
Hazardous Location Motor, 1 HP, 1725 rpm

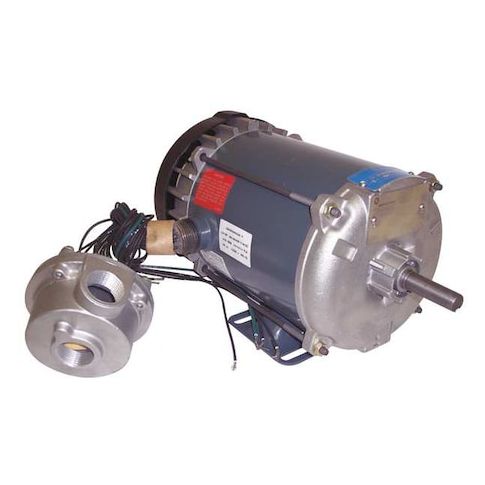

This Leeson hazardous location motor is designed for use in areas where flammable gases or vapors are present, such as chemical plants, oil refineries, and other high-risk environments. Its totally enclosed fan-cooled design and Class I, Class II, and T3B temperature rating make it an ideal choice for applications in extreme conditions. With a continuous duty cycle and auto thermal protection, this motor provides reliable performance and extended lifespan. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity in a variety of industries, including oil and gas, chemical, and manufacturing.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled enclosure
- Continuous duty cycle
Top product applications:
- Explosion-proof pumps for chemical plants
- Flammable gas processing equipment
- Oil rig machinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.3-3.2/1.6 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.58
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 35.00
Product info last updated on February 26, 2026 12:24pm UTC
Category: Motors
