Hazardous Location Motor, 1 HP, 1725 rpm MPN:056T17G15607

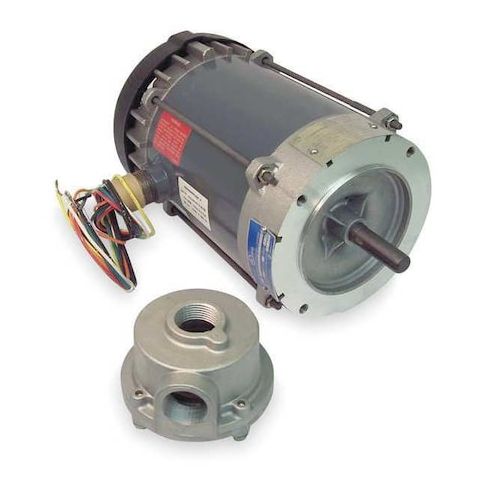

Hazardous Location Motor, 1 HP, 1725 rpm
This 1 HP hazardous location motor from Leeson is designed for use in areas where flammable gases or vapors are present. With a totally enclosed fan-cooled design and Class I, Class II, and T3B temperature rating, it provides reliable operation in harsh environments. Suitable for continuous duty cycles, this motor can be used in a variety of applications, including oil and gas refineries, chemical plants, and other industries where hazardous locations require specialized equipment. Its 230V and 460V AC voltage capabilities make it a versatile choice for meeting different operational needs.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Continuous duty cycle capability
Top product applications:
- Pumping stations in hazardous locations
- Oil and gas refineries
- Chemical processing plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.94
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 47.00
Product info last updated on February 19, 2026 5:48am UTC
Category: Motors
