Hazardous Location Motor, 2 HP, 1725 rpm MPN:056T17G15608

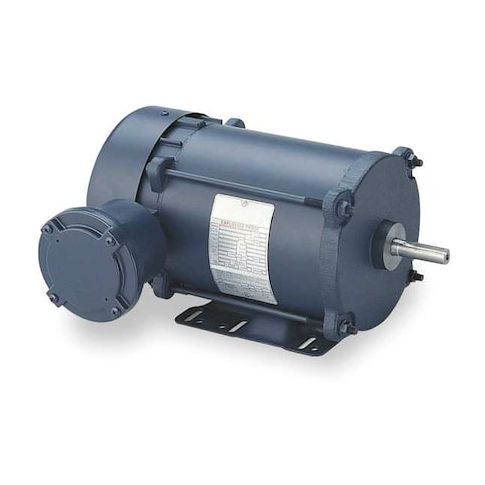

Hazardous Location Motor, 2 HP, 1725 rpm
This 2 HP hazardous location motor from Leeson is designed for use in areas where flammable gases or vapors are present. With a totally enclosed fan-cooled design and Class I and II ratings, it provides reliable operation in harsh environments. The motor is suitable for continuous duty cycles and can operate at temperatures up to 40°C. Its compact size and lightweight design make it easy to install and maintain. Ideal for use in oil refineries, chemical plants, and other industries where hazardous locations are present, this motor offers a safe and efficient solution for power applications.
Top product features:
- Two-phase motor design
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Pump motor for hazardous locations
- Industrial equipment motor for hazardous environments
- Fan motor for hazardous areas
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 6.0/3.0 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.08
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 50.00
Product info last updated on February 16, 2026 12:22pm UTC
Category: Motors
