AC Gearmotor, 341 in-lb Max. Torque, 9 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase MPN:096065.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0735375

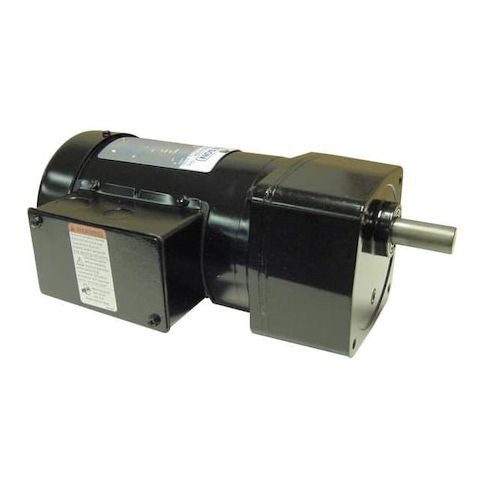

AC Gearmotor, 341 in-lb Max. Torque, 9 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase
This AC gearmotor from Leeson offers high torque output with a maximum of 341 in-lb, ideal for applications requiring precise control and low-speed operation. The 3-phase motor is designed for inverter duty and features a totally enclosed fan-cooled enclosure for reliable performance in harsh environments. With a nameplate speed of 9 RPM and a gear ratio of 180:1, this motor is suitable for applications such as packaging machinery, material handling, and robotics. Its compact design and high-torque output make it an excellent choice for industries requiring precise control and efficient operation.
Top product features:
- Totally Enclosed Fan-Cooled motor design for improved durability and reliability
- 180:1 gear ratio for high torque and low speed operation
- Continuous duty rating for long-term operation under heavy loads
Top product applications:
- Inverter Duty
- Continuous Duty
- Industrial Automation
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 9 RPM, Maximum Torque 341 in-lb, Overhung Load Capacity 327 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230/460V AC, Inverter Rated Yes, Gear Ratio 180:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 10.70
- Package Height: 11.50
- Package Weight: 22.90
