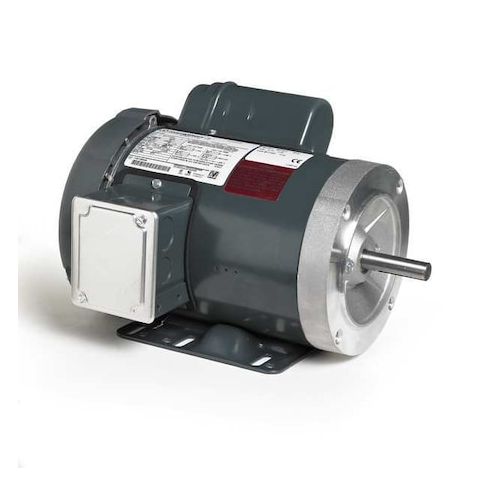

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:056C34F5303
Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1 hp Capacitor-Start General Purpose Motor from Leeson is a reliable and efficient solution for a variety of applications, including industrial and commercial use. With a 3,450 RPM nameplate speed and 1.15 service factor, it can handle continuous duty cycles in temperatures up to 40 degrees C. The motor's totally enclosed fan-cooled design provides excellent protection against dust and moisture. Suitable for use at 115/208-230V AC voltage, this motor is ideal for applications such as pumps, fans, and conveyor systems, offering a cost-effective and durable solution for your motor needs.
Top product features:
- Totally Enclosed Fan Cooled design provides a protected motor environment for reliable operation.
- Continuous duty cycle allows for uninterrupted operation under normal load conditions.
- Single phase motor design with capacitor-start functionality enables efficient operation in a variety of applications.
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.2/5.7-5.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 31.00
Product info last updated on February 1, 2026 12:13pm UTC
Category: Motors
