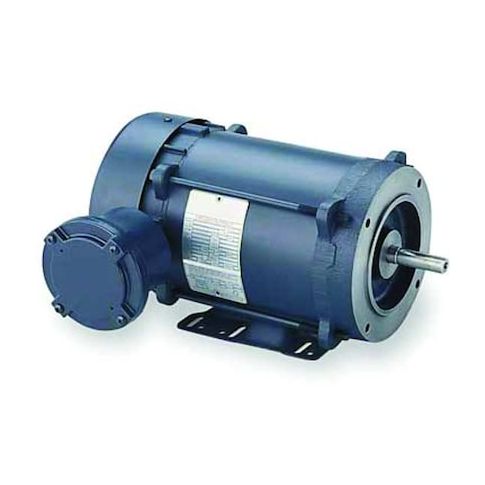

Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B MPN:056T17G15545
Hazardous Loc Mtr, 3 Ph, TEFC, 3/4 HP, T3B
This hazardous location motor from Leeson is a reliable and efficient solution for applications in harsh environments. With a 3/4 HP rating and 1,725 RPM, it can handle demanding tasks while maintaining a high level of performance. The motor's three-phase design and totally enclosed fan-cooled enclosure ensure optimal cooling and protection from dust and moisture. Suitable for use in Class I and Class II hazardous locations, it's ideal for applications in oil and gas, chemical processing, and other industries where safety and reliability are paramount. Its compact design and continuous duty cycle make it a versatile and valuable addition to any operation.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled (TEFC) design
- Continuous duty cycle
Top product applications:
- Industrial Control Panels
- Pumps and Pumps Accessories
- Fans and Blowers
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.94
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 30.60
Product info last updated on February 6, 2026 12:11am UTC
Category: Motors
