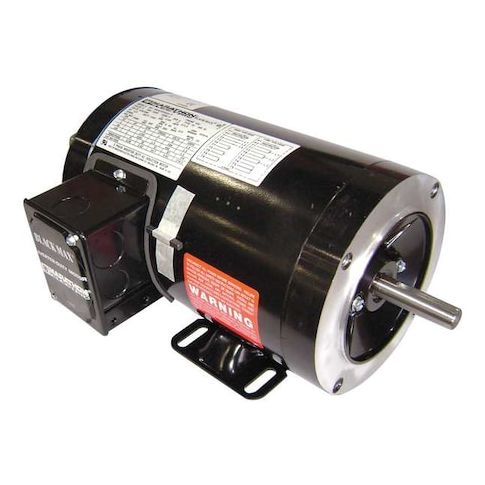

Vector Motor, 3.0 lb-ft, 1 HP, 230/460 V MPN:056H17T15527
Vector Motor, 3.0 lb-ft, 1 HP, 230/460 V
This high-performance 1 HP Vector Motor from Leeson is designed for demanding industrial applications. With a 3.0 lb-ft torque and 1,725 nameplate RPM, it provides efficient power and speed control. Suitable for use in 230/460V AC environments, this motor offers a 1,000:1 speed range and operates at a maximum frequency of 120 Hz. Its robust design and continuous duty cycle make it ideal for applications such as conveyor systems, pumps, and machinery. The motor's compact 56C frame and NEMA Design A rating ensure reliable performance in a wide range of industrial settings.
Top product features:
- Three-phase motor design
- Torque output of 3.0 lb-ft
- Speed range of 1,000:1
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, Torque 3 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 11.60
- Package Height: 10.80
- Package Weight: 40.60
Product info last updated on February 3, 2026 3:50am UTC
Category: Motors
