Hzrdus Loc Mtr, Cap Strt, TEFC, 1/2 HP, T3B MPN:056C17G5328
Hzrdus Loc Mtr, Cap Strt, TEFC, 1/2 HP, T3B

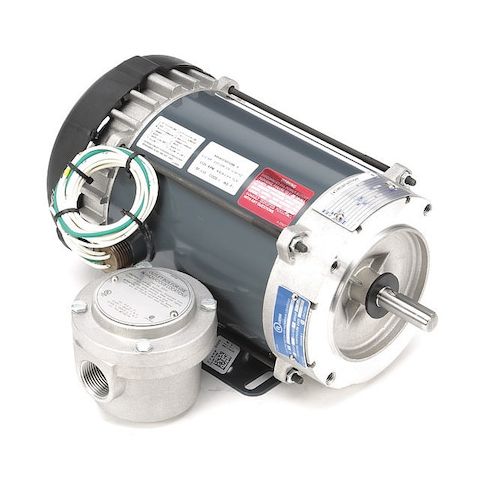

The Hzrdus Loc Mtr, Cap Strt, TEFC, 1/2 HP, T3B motor from Leeson is a reliable and efficient solution for hazardous location applications. This single-phase motor is designed for use in areas where explosion-proof equipment is required, making it ideal for use in chemical plants, oil refineries, and other high-risk environments. With a maximum ambient temperature of 40 degrees C and a motor service factor of 1.15, this motor provides consistent performance and durability. Its compact design and low maintenance requirements also make it a cost-effective solution for applications where space is limited.
Top product features:
- Totally Enclosed Fan Cooled design
- Motor Design Capacitor-Start
- Hazardous Location Class I, Class II, Temp. Code T3B certification
Top product applications:
- Pumps
- Compressors
- Generators
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 9.12
- Package Weight: 29.00
Product info last updated on April 22, 2026 7:58am UTC
Category: Motors
