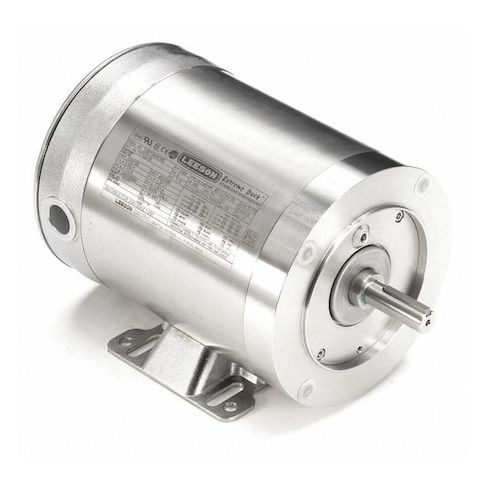

Washdown Motor, 3 Ph, TENV, 1 HP, 3450 rpm
This 1 HP, 3-phase, totally enclosed non-ventilated (TENV) washdown motor from Leeson is designed for heavy-duty applications in wet or corrosive environments. Its high power and continuous duty cycle make it suitable for use in food processing, chemical plants, and other industries where reliability and durability are crucial. The motor's 56C frame and Class F insulation ensure long lifespan and resistance to extreme temperatures. With a service factor of 1.15, it can handle demanding tasks with ease. Its compact design and CW/CCW rotation make it versatile and easy to integrate into existing systems.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed non-ventilated design provides protection from dust and water.
- Continuous duty cycle enables uninterrupted operation for extended periods.
Top product applications:
- High-pressure wash systems
- Chemical processing equipment
- Food processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.00
- Package Height: 11.50
- Package Weight: 46.71
