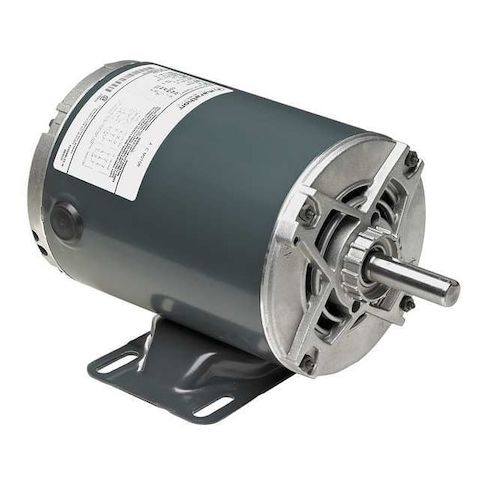

Three-Phase General Purpose Motor, 1/2 HP, 208-230/460V AC Voltage, 56 Frame, 1, 725 Nameplate RPM MPN:056T17DRR70021A1
Three-Phase General Purpose Motor, 1/2 HP, 208-230/460V AC Voltage, 56 Frame, 1, 725 Nameplate RPM
This 1/2 HP three-phase general purpose motor from Leeson is a reliable and efficient solution for a wide range of applications. Suitable for continuous duty, it operates at 1,725 nameplate RPM and features a rigid base motor mounting type for secure installation. With a maximum ambient temperature of 40 degrees C, it can handle demanding environments. The motor's thermal protection and ball bearings ensure smooth operation and extended lifespan. Ideal for use in industrial settings, such as manufacturing and processing plants, this motor is also UL, CE, and CSA recognized for added safety and compliance.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial conveyor systems
- Pump applications in water treatment plants
- Food processing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.7-1.8/0.90 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.2 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 25.00
Product info last updated on March 14, 2026 11:57pm UTC
Category: Motors
