Three-Phase General Purpose Motor, 3/4 HP, 208-230/460V AC Voltage, 56 Frame, 1, 725 Nameplate RPM MPN:056T17DRR70023A1
Three-Phase General Purpose Motor, 3/4 HP, 208-230/460V AC Voltage, 56 Frame, 1, 725 Nameplate RPM

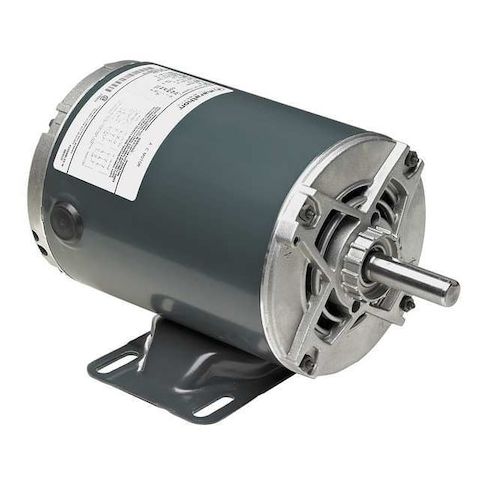

This 3/4 HP, three-phase general purpose motor from Leeson is designed for a wide range of applications, including industrial and commercial use. With a high efficiency rating of 81.1% and a nameplate RPM of 1,725, this motor provides reliable and efficient power. Its open drip proof motor enclosure design and rigid base motor mounting type make it suitable for use in harsh environments. The motor's continuous duty rating and automatic thermal protection ensure safe and reliable operation. Ideal for use in fans, pumps, and other equipment, this motor is a cost-effective solution for industrial and commercial applications.
Top product features:
- Three-Phase General Purpose Motor
- Three-Phase, Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Automation
- Pumps and Water Treatment
- Food Processing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,725, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.6-2.6/1.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.62
- Package Weight: 29.00
Product info last updated on February 16, 2026 3:29pm UTC
Category: Motors
