Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B MPN:056T11G15517
Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B

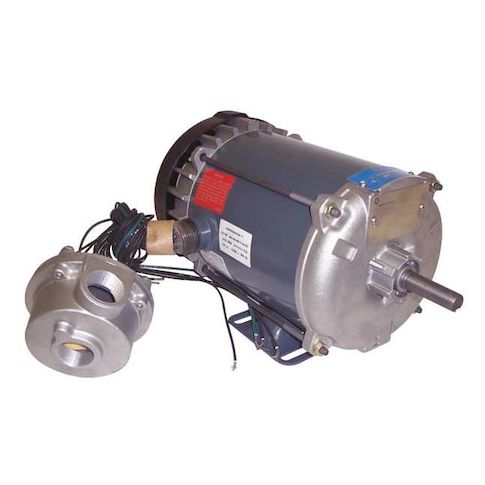

This Leeson Hazardous Location Motor is designed for use in hazardous environments, meeting Class I and Class II requirements for safe operation. It features a totally enclosed fan-cooled (TEFC) design for efficient cooling and reduced maintenance. With a 1/2 horsepower rating and 1,140 RPM, this motor is suitable for a range of applications, including industrial and commercial settings. Its compact size and durable construction make it an ideal choice for use in areas with limited space. The motor's continuous duty cycle and 40°C maximum ambient temperature ensure reliable operation in demanding environments.
Top product features:
- Three phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Oil and Gas Industry Pumps
- Food Processing Equipment
- Industrial Laundry Machinery
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.4-2.7/1.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.44
- Package Width: 8.20
- Package Height: 7.35
- Package Weight: 27.80
Product info last updated on January 24, 2026 3:41am UTC
Category: Motors
