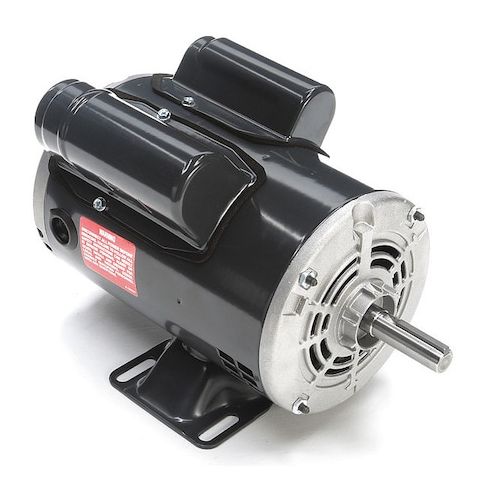

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame MPN:056B17D11030
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame
The Leeson 1/2 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for single-phase use, this motor can operate at 115/230V AC voltage and is ideal for use in commercial and industrial settings. With a nameplate RPM of 1,725 and a continuous duty cycle, it can handle demanding tasks with ease. The motor's open drip-proof design and rigid base mounting make it easy to install and maintain, while its 1.25 service factor ensures reliable operation in a variety of temperatures. Perfect for fans, pumps, and conveyor systems.
Top product features:
- Capacitor-start/run design for efficient starting and operation
- Single phase motor design for common household and commercial applications
- Rigid base mounting type for secure and stable installation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.6/2.3 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.44
- Package Width: 9.13
- Package Height: 8.06
- Package Weight: 23.00
