Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame MPN:056B17D11037
Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame

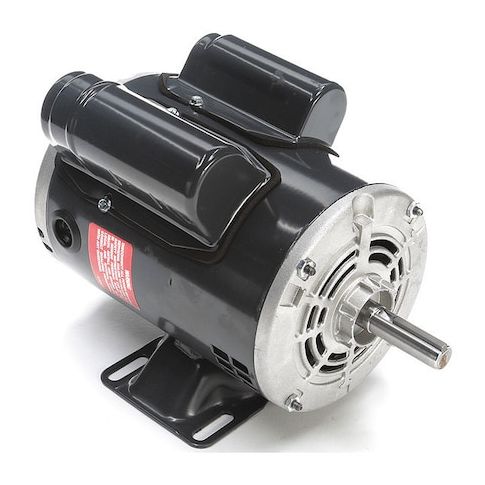

The Leeson Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for single-phase power sources, this motor delivers 1/3 horsepower at 1,725 RPM, making it ideal for use in residential and commercial settings. Its compact 56 frame design and open drip-proof enclosure ensure easy installation and minimal maintenance. The motor's continuous duty cycle and thermal protection make it perfect for applications requiring consistent performance, such as in HVAC systems, pumps, and fans. With its compact size and versatile design, this motor is an excellent choice for a wide range of industrial and commercial applications.
Top product features:
- Capacitor-start/run design provides efficient starting and running capabilities
- Operates at 1,725 RPM for specific applications
- Has an open drip-proof enclosure design for protection against dust and water
Top product applications:
- Pump and fan applications
- Pump and fan applications
- General purpose industrial equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 9.62
- Package Weight: 21.00
Product info last updated on January 14, 2026 12:04pm UTC
Category: Motors
