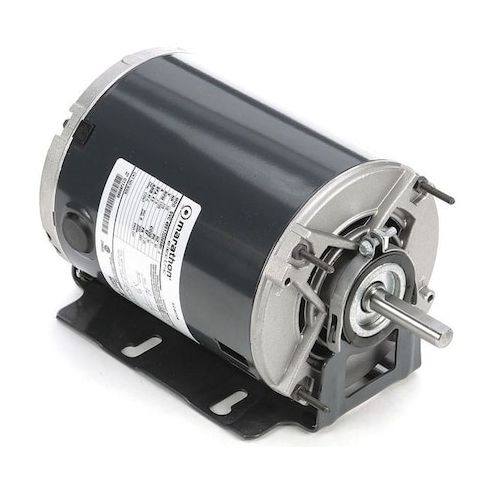

Split-Phase Fan and Blower Motor, 1/2 HP, 48Y Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:048S17D2058
Split-Phase Fan and Blower Motor, 1/2 HP, 48Y Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This 1/2 HP split-phase fan and blower motor from Leeson is designed for a wide range of applications, including residential and commercial HVAC systems, industrial ventilation, and material handling. Its 1,725 RPM nameplate speed provides efficient airflow, while its 115V AC voltage and 7.5 A full load amps ensure reliable operation. The motor's open drip-proof design and cradle base mounting make it easy to install and maintain. With a continuous duty cycle and maximum ambient temperature of 70°C, this motor is built to withstand demanding conditions, making it a reliable choice for your next project.
Top product features:
- Split-Phase design for efficient operation
- 1/2 HP capacity for reliable performance
- 1,725 Nameplate RPM for high-speed applications
Top product applications:
- HVAC systems
- Air conditioning units
- Dust collection systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.5 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 18.00
Product info last updated on February 2, 2026 10:53am UTC
Category: Motors
