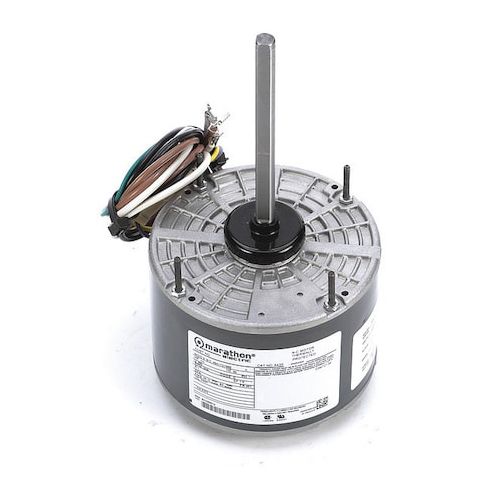

Condenser Fan Motor, 1/4 hp MPN:048A17O169
Condenser Fan Motor, 1/4 hp
This 1/4 hp condenser fan motor from Leeson is a reliable and efficient solution for various applications. Suitable for use in commercial and industrial settings, it operates at 1,625 RPM, providing a consistent and quiet performance. With a permanent split capacitor design and single-phase operation, this motor is easy to install and maintain. Its compact 48Y frame makes it ideal for space-constrained areas, while its continuous duty cycle and 40°C maximum ambient temperature ensure reliable operation in a variety of conditions. Perfect for HVAC systems, air handling units, and other condenser fan applications.
Top product features:
- Single Phase operation
- Permanent Split Capacitor motor design
- Continuous duty cycle
Top product applications:
- Air Conditioning Unit
- Refrigeration Systems
- Heat Pumps
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 460V AC, 1.0 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.25
- Package Width: 7.00
- Package Height: 6.94
- Package Weight: 12.00
Product info last updated on February 24, 2026 12:24am UTC
