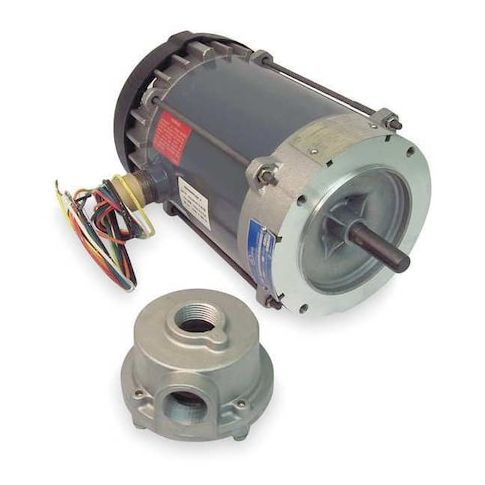

Hazardous Loc Mtr, Cap Strt, TEFC, 1 HP, T3B MPN:056C17G15516
Hazardous Loc Mtr, Cap Strt, TEFC, 1 HP, T3B
This Leeson hazardous location motor is designed for use in areas where standard motors are not suitable, such as in oil rigs, chemical plants, or other environments with explosive atmospheres. Its totally enclosed fan-cooled (TEFC) design and Class I, Class II, and T3B temperature rating make it an ideal choice for applications requiring high reliability and safety. With a single-phase, capacitor-start design and a 1 hp rating, this motor can handle continuous duty cycles in temperatures up to 40°C, making it suitable for a wide range of industrial and commercial applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Capacitor-Start motor design for efficient starting and reduced energy consumption
- Hazardous Location Class I, Class II certification for safe operation in explosive or flammable environments
Top product applications:
- Oil and Gas Industry
- Pulp and Paper Industry
- Power Generation
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.4/6.8-6.7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.44
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 34.00
