Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm MPN:121882.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0393224

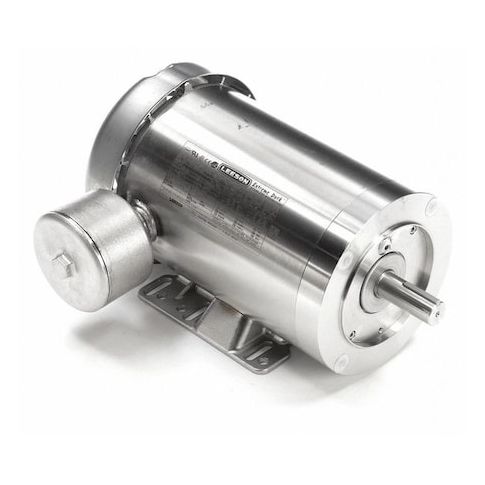

Washdown Motor, 3 Ph, TEFC, 2 HP, 1745 rpm
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 13.90
- Package Height: 14.00
- Package Weight: 62.20
Product info last updated on January 19, 2026 10:59pm UTC
Category: Motors
