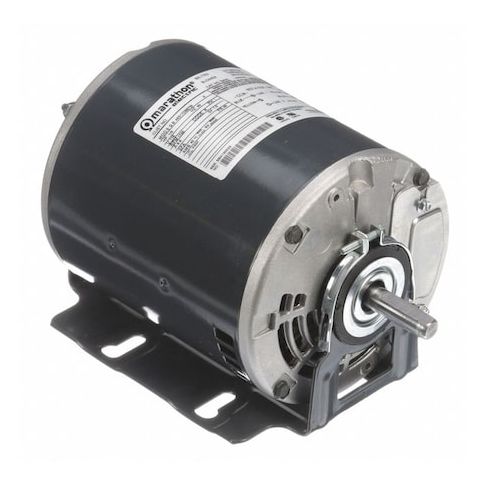

Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:048S17D997
Split-Phase Belt Drive Motor, 1/3 HP, 48 Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This 1/3 HP, 115V AC, split-phase belt drive motor from Leeson is ideal for a variety of applications requiring a reliable and efficient power source. Suitable for use in fan and blower systems, this motor provides continuous operation and is designed for open air over environments. With a maximum ambient temperature of 40 degrees C and a duty cycle of continuous, it can handle demanding tasks with ease. Its compact design and cradle base mounting make it easy to integrate into existing systems, making it a great choice for industrial, commercial, and residential use.
Top product features:
- Split-phase motor design for efficient operation
- Single-phase AC voltage compatibility at 115V
- Continuous duty cycle operation for prolonged use
Top product applications:
- Air Conditioning Unit Fan Motor
- Pool Pump Motor
- Ductwork Fan Motor
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 6.6 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 14.00
Product info last updated on January 29, 2026 12:58am UTC
Category: Motors
