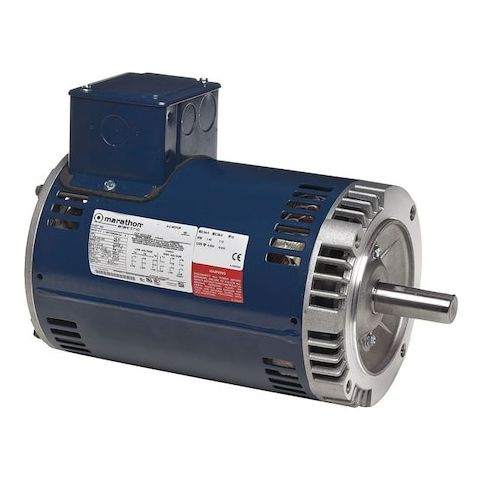

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTDR16359
Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM
This 2 HP three-phase general purpose motor is designed for a variety of industrial applications, including pumps, fans, and conveyor systems. Its 1750 rpm nameplate speed and 86.5% nominal efficiency ensure reliable and efficient operation. The motor's open drip-proof enclosure and steel frame provide durability and protection from the elements. With a service factor of 1.15, it can handle overloads and varying loads with ease. Suitable for continuous duty, this motor is ideal for use in manufacturing, processing, and other industrial settings where high performance and reliability are critical.
Top product features:
- Three-Phase General Purpose Motor design allows for efficient operation in three-phase electrical systems.
- Open Drip Proof Motor Enclosure Design provides protection from dust and water ingress, ensuring reliable operation in harsh environments.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pumps and other equipment in industrial settings
- Fans and blowers in commercial and industrial applications
- Conveyors and other machinery in manufacturing facilities
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.62
- Package Weight: 45.60
Product info last updated on February 9, 2026 12:17am UTC
Category: Motors
