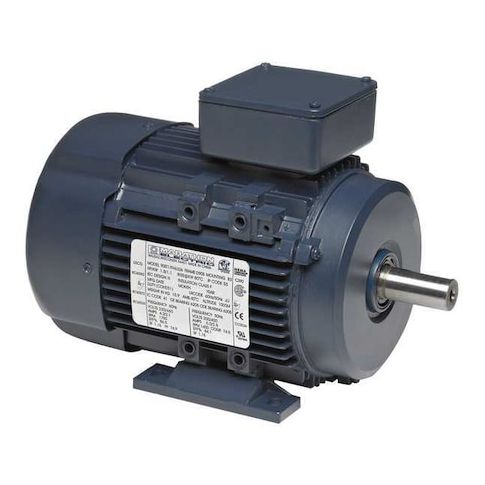

Metric Motor, 1 HP, 3.0/1.5A, 1740 rpm MPN:080T17FH15327
Metric Motor, 1 HP, 3.0/1.5A, 1740 rpm
This Leeson 1 HP, 3.0/1.5A, 1740 rpm metric motor is designed for general purpose use in a variety of applications, including industrial and commercial settings. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its ball motor bearings ensure smooth and quiet operation. With a maximum ambient temperature of 40 degrees C, this motor is suitable for use in a range of applications, including pumps, fans, and conveyor systems. Its high efficiency and continuous duty rating make it an ideal choice for demanding applications, providing reliable and cost-effective operation.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Three-Phase Motor Design
- Ball Motor Bearings
Top product applications:
- Pump applications for water or chemical transfer
- Conveyor systems for light to medium duty
- Fans for general ventilation or industrial processes
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 1740 rpm, Frame 80, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.17
- Package Width: 9.65
- Package Height: 10.24
- Package Weight: 31.00
Product info last updated on April 26, 2026 3:23pm UTC
Category: Motors
