Metric Motor, 1 HP, 3.0/1.5A, 1740 rpm MPN:080T17FH15514

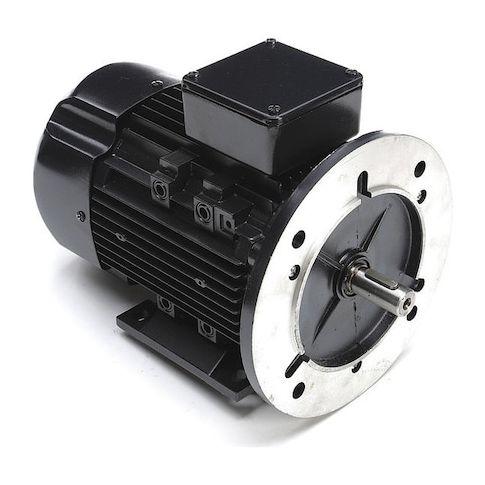

Metric Motor, 1 HP, 3.0/1.5A, 1740 rpm
This 1 HP, 3-phase motor from Leeson is a reliable and efficient choice for a wide range of applications. Suitable for continuous duty, it provides a nominal efficiency of 85.5% and a maximum ambient temperature of 40°C. The totally enclosed fan cooled design ensures quiet operation and protection from environmental factors. Its rigid base and C-face motor mounting type make it easy to integrate into existing systems. Ideal for use in industrial settings, such as manufacturing, processing, and material handling, this motor delivers reliable performance and long-lasting durability. Its compact size and lightweight design also make it suitable for use in commercial settings.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications
- Industrial conveyor systems
- Machine tools and equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 1740 rpm, Frame 80D, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.17
- Package Width: 9.65
- Package Height: 10.24
- Package Weight: 47.00
Product info last updated on January 31, 2026 8:29am UTC
Category: Motors
