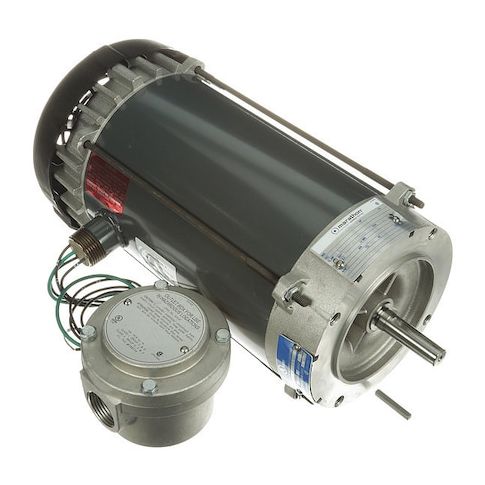

Hazardous Location Motor, 1 HP, 1725 rpm MPN:056T17G15615
Hazardous Location Motor, 1 HP, 1725 rpm
This 1 HP, 1725 rpm hazardous location motor from Leeson is designed for use in environments where safety is paramount, meeting Class I, Class II and T3B temperature ratings. With a three-phase design and totally enclosed fan-cooled enclosure, it provides reliable operation in extreme conditions. Suitable for use in applications such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers continuous duty cycle and auto thermal protection. Its compact size and low maintenance requirements make it an ideal choice for industries where space and downtime are limited. It ships in one day with a minimum order quantity of one.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Three-Phase design allows for efficient power distribution and motor operation.
- Continuous Duty Cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Oil and Gas Pumping Stations
- Refineries and Petrochemical Plants
- Chemical Processing Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 575V AC, Full Load Amps 1.3 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.31
- Package Width: 11.19
- Package Height: 9.75
- Package Weight: 48.00
Product info last updated on February 3, 2026 1:40pm UTC
Category: Motors
