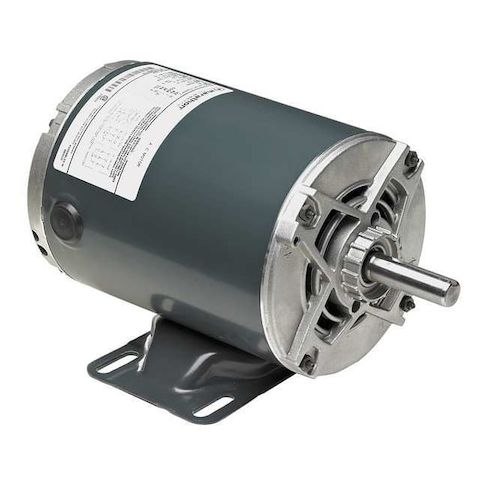

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM MPN:143TTDR16056
Three-Phase General Purpose Motor, 1 HP, 143T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM
This 1 HP, 200V AC three-phase general purpose motor is designed for a wide range of applications including industrial machinery, conveyor systems, and pumps. Its 143T frame and open drip proof enclosure provide durability and protection in harsh environments. With a nameplate RPM of 1760 and a maximum ambient temperature of 40°C, this motor can operate in demanding conditions. Its high efficiency and continuous duty rating make it an ideal choice for applications requiring reliable and long-lasting performance. Suitable for use in various industries, including manufacturing, material handling, and more, this motor is a reliable and cost-effective solution.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection from dust and debris
- Ball bearings for smooth and quiet operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 9.62
- Package Weight: 42.00
Product info last updated on February 1, 2026 1:36am UTC
Category: Motors
