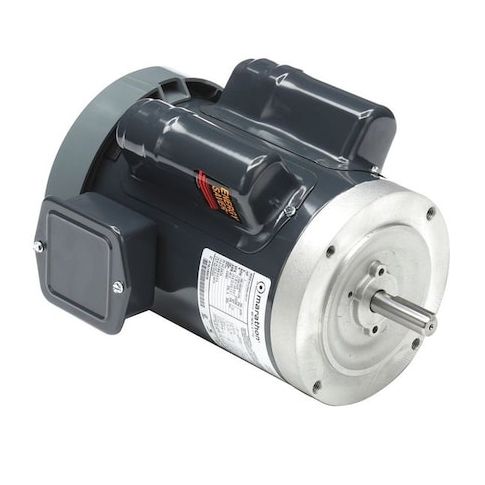

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 100-120/200-240V AC Voltage, 56C Frame MPN:5KCR49UN0107
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 100-120/200-240V AC Voltage, 56C Frame
This 1 hp single-phase motor from Leeson is designed for general purpose applications and features a capacitor-start/run design for efficient operation. Suitable for use in 100-120/200-240V AC environments, it offers a high power factor and low current draw, making it an ideal choice for a variety of applications, including industrial equipment, HVAC systems, and commercial refrigeration. With a robust 56C frame and totally enclosed fan cooled design, this motor provides reliable performance and long lifespan, even in demanding conditions. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor cooling and reliability
- Motor Design Capacitor-Start/Run for efficient and reliable operation
- Usable at 200V with a Full Load Amps of 5.7 A for flexibility in voltage usage
Top product applications:
- Industrial machinery
- Conveyor systems
- Pumps
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 100-120/200-240V AC, Full Load Amps 11.4/5.7 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.14
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 40.00
Product info last updated on January 28, 2026 3:01pm UTC
Category: Motors
