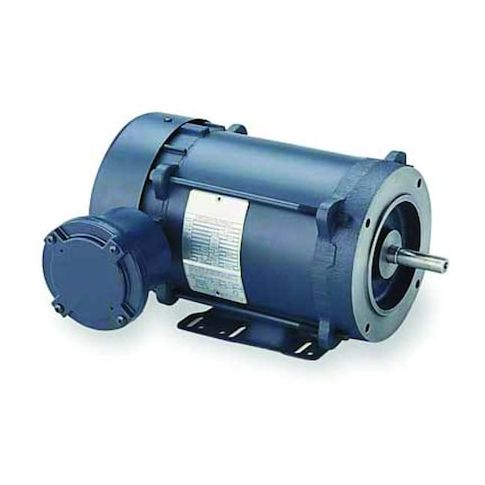

Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B MPN:056T17G15559
Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B
This hazardous location motor from Leeson is designed for use in explosive or flammable environments, meeting Class I, Class II, and T3B temperature codes. With a 1/2 horsepower rating and 1,725 RPM, it's ideal for applications requiring high reliability and efficiency. The motor's totally enclosed fan-cooled design ensures safe operation in harsh conditions, while its continuous duty cycle and 1 service factor make it suitable for demanding applications. Suitable for use in industries such as oil and gas, chemical processing, and mining, this motor provides a reliable and safe solution for hazardous location operations.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- High-hazard industrial environments such as oil rigs or chemical plants
- Pumps and other equipment in hazardous locations
- High-temperature applications such as foundries or steel mills
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 2.4/1.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.94
- Package Width: 8.20
- Package Height: 7.11
- Package Weight: 29.20
Product info last updated on March 5, 2026 9:05pm UTC
Category: Motors
