Washdown Brake Motor, 1/2 HP, 230/460V MPN:116483.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0123969

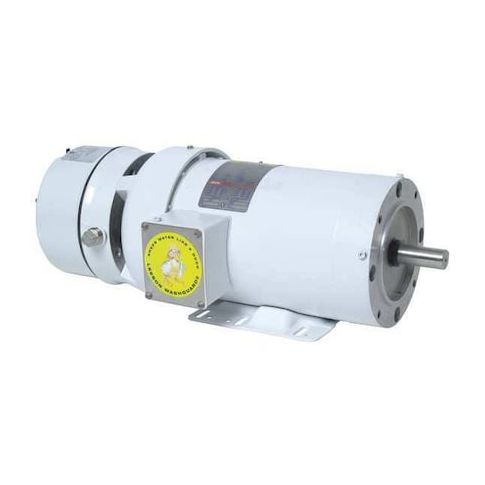

Washdown Brake Motor, 1/2 HP, 230/460V
This 1/2 HP, 230/460V washdown brake motor from Leeson is designed for use in harsh environments and meets the demands of continuous duty cycles. Its totally enclosed non-ventilated design protects against dust and water ingress, making it ideal for applications in food processing, pharmaceutical, and chemical manufacturing industries. The motor's 1,725 RPM and CW/CCW rotation capabilities enable efficient and reliable operation in a variety of applications, including conveyor systems, mixers, and pumps. With a 1.15 service factor and Class F insulation, this motor provides long-lasting performance and reliability in demanding washdown environments.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure design provides a clean and safe operating environment.
- Three-Phase motor design allows for efficient and reliable operation in a variety of applications.
- Continuous duty cycle capability enables the motor to run continuously without overheating or failing.
Top product applications:
- Water Treatment Plants
- Food Processing Plants
- Pharmaceutical Manufacturing Facilities
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.6/0.8 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.31
- Package Width: 13.44
- Package Height: 13.50
- Package Weight: 59.00
Product info last updated on January 31, 2026 1:19am UTC
Category: Motors
