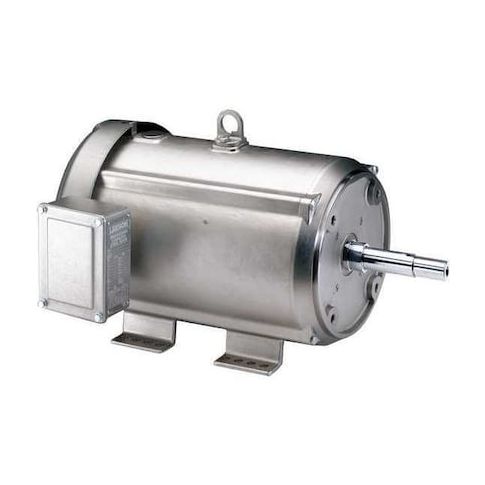

Washdown Motor, 10HP, 3-Phase Motor Design MPN:141276.00
Washdown Motor, 10HP, 3-Phase Motor Design
This 10HP washdown motor from Leeson is a reliable and efficient solution for applications that require high-performance operation in harsh environments. Designed for continuous use, this three-phase motor features a totally enclosed fan-cooled design and a high service factor of 1.15, making it ideal for applications such as food processing, pharmaceutical manufacturing, and chemical processing. With a wide range of voltage and frequency options, including 230/460V AC and 60/50 Hz, this motor can be used in various settings. Its durable construction and easy maintenance make it a valuable addition to any industrial operation.
Top product features:
- Three-phase design
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Pulp and Paper Industry Machinery
- Chemical Processing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 26.4/13.2 A, 215JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.94
- Package Width: 16.44
- Package Height: 15.00
- Package Weight: 175.00
Product info last updated on February 1, 2026 2:24am UTC
Category: Motors
