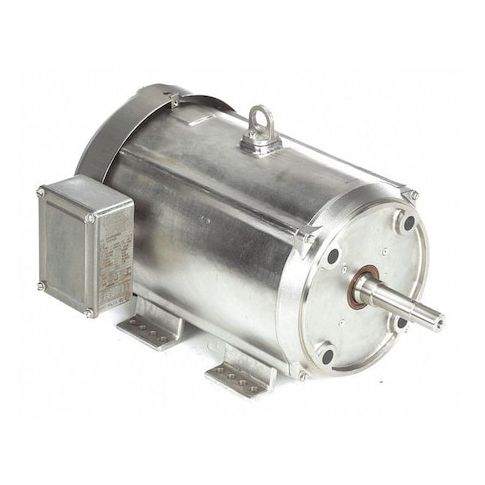

Washdown Motor, 7-1/2 HP, 213JM Frame, CWSE MPN:141274.00
Washdown Motor, 7-1/2 HP, 213JM Frame, CWSE
This 7-1/2 HP washdown motor from Leeson is a reliable and efficient solution for a variety of applications, including food processing, pharmaceutical, and chemical processing. Its totally enclosed fan-cooled design and Class F insulation ensure optimal performance in harsh environments. The motor's continuous duty cycle and NEMA Design B rating make it suitable for high-demand applications. With a compact 213JM frame and CW/CCW shaft rotation, this motor can be easily integrated into existing systems. Its 15-day lead time and drop ship availability make it a convenient choice for businesses of all sizes.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Food Processing
- Water Treatment Plants
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 18.6/9.3 A, 213JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.94
- Package Width: 16.44
- Package Height: 15.00
- Package Weight: 151.00
Product info last updated on February 3, 2026 12:17pm UTC
Category: Motors
