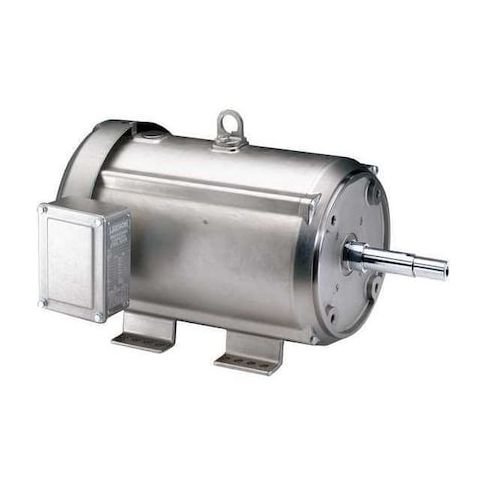

Washdown Motor, 3HP, 182JM Frame, 16-1/4"L MPN:132450.00
Washdown Motor, 3HP, 182JM Frame, 16-1/4"L
This 3HP washdown motor is designed for use in harsh environments, featuring a totally enclosed fan-cooled design and a high service factor of 1.15. Ideal for applications such as food processing, pharmaceutical manufacturing, and chemical plants, it can withstand high temperatures and corrosive substances. The motor's 1,770 RPM and single-speed design provide reliable operation, while its NEMA Design B rating ensures compliance with industry standards. With a compact 182JM frame, it's perfect for tight spaces, and its removable base is not required, making installation and maintenance a breeze. Ships in 15 days with a minimum order quantity of one unit.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled enclosure
- Continuous duty cycle
Top product applications:
- Pumps and water treatment systems
- Industrial laundry equipment
- Food processing and manufacturing equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.8/3.9 A, 182JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.31
- Package Width: 13.44
- Package Height: 13.50
- Package Weight: 79.00
Product info last updated on February 27, 2026 5:32am UTC
Category: Motors
