Washdown Motor, 5HP, 184JM Frame, 17-1/4"L MPN:132452.00

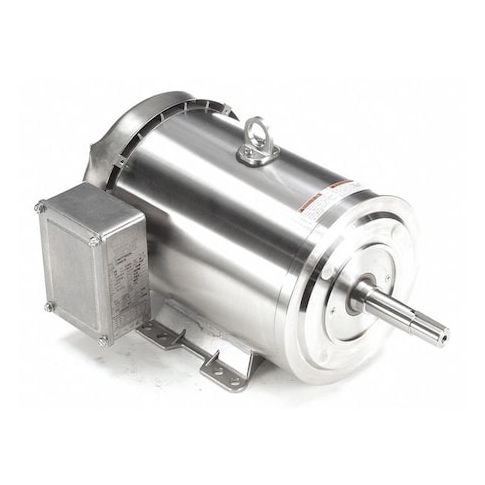

Washdown Motor, 5HP, 184JM Frame, 17-1/4"L
This 5HP washdown motor from Leeson is designed for harsh environments and demanding applications. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable performance in wet or dirty conditions. Suitable for use at 230/460V AC or 208V, this motor is ideal for applications such as food processing, chemical handling, and wastewater treatment. With a continuous duty cycle and 1.15 service factor, it can handle heavy loads and maintain efficiency. Its compact 184JM frame makes it easy to install in tight spaces, making it a versatile solution for a wide range of industrial applications.
Top product features:
- Three-phase motor design
- Totally enclosed fan-cooled enclosure
- Continuous duty cycle
Top product applications:
- Industrial food processing
- Pump stations
- Chemical plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.00
- Package Height: 13.50
- Package Weight: 90.00
Product info last updated on February 15, 2026 4:07pm UTC
Category: Motors
