Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 208-230/460V Voltage, 1, 140 Nameplate RPM MPN:056T11F15539
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G008229790

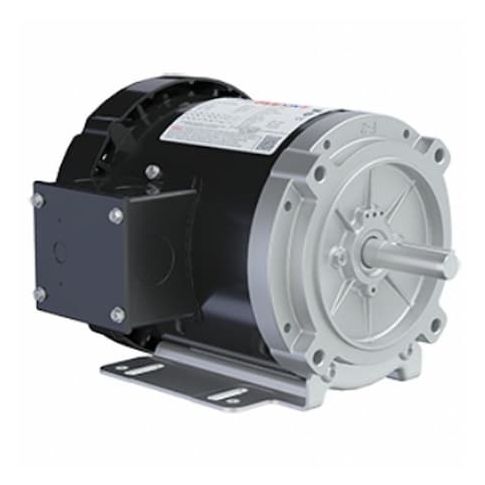

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 208-230/460V Voltage, 1, 140 Nameplate RPM
This Leeson three-phase general purpose motor is designed for a variety of applications, including industrial and commercial use. With a 1/3 HP rating and 1,140 nameplate RPM, it provides efficient power for machinery and equipment. The totally enclosed fan cooled motor enclosure protects against dust and moisture, while the steel frame and ball bearings ensure durability and long motor life. Suitable for use in a range of settings, including factories, warehouses, and offices, this motor offers a reliable and cost-effective solution for powering equipment and machinery. Its compact size and universal mounting type make it easy to install.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CCW Motor Shaft Rotation
Top product applications:
- Industrial conveyor systems
- Manufacturing machinery
- Pumps and water treatment equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,140, Frame 56C, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.9-2.2/1.1 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 62 Percent, 0-1,140, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 20.00
Product info last updated on March 4, 2026 6:25am UTC
Category: Motors
