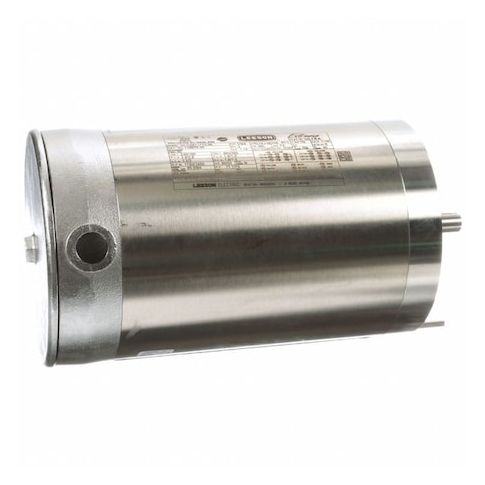

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 750 RPM Nameplate RPM
This three-phase washdown motor is designed for use in harsh environments where high-pressure water jets are used to clean equipment and surfaces. With a 1 hp rating and 1,750 RPM, it provides reliable and efficient power for applications such as food processing, pharmaceutical manufacturing, and chemical plants. The motor's totally enclosed air-over design and NEMA Design B rating ensure a long lifespan and high level of protection against dust and water ingress. Its compact 56C frame makes it easy to integrate into existing systems, making it an ideal choice for a variety of washdown applications.
Top product features:
- Three-phase design for high-torque and efficient operation
- Totally enclosed air-over enclosure for protection from dust and water
- Continuous duty cycle for non-stop operation in harsh environments
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 11.00
- Package Height: 12.10
- Package Weight: 58.20
